Omega Contactor 16 way + 2 AUX
Order Before 3pm for Next Day Delivery
Description

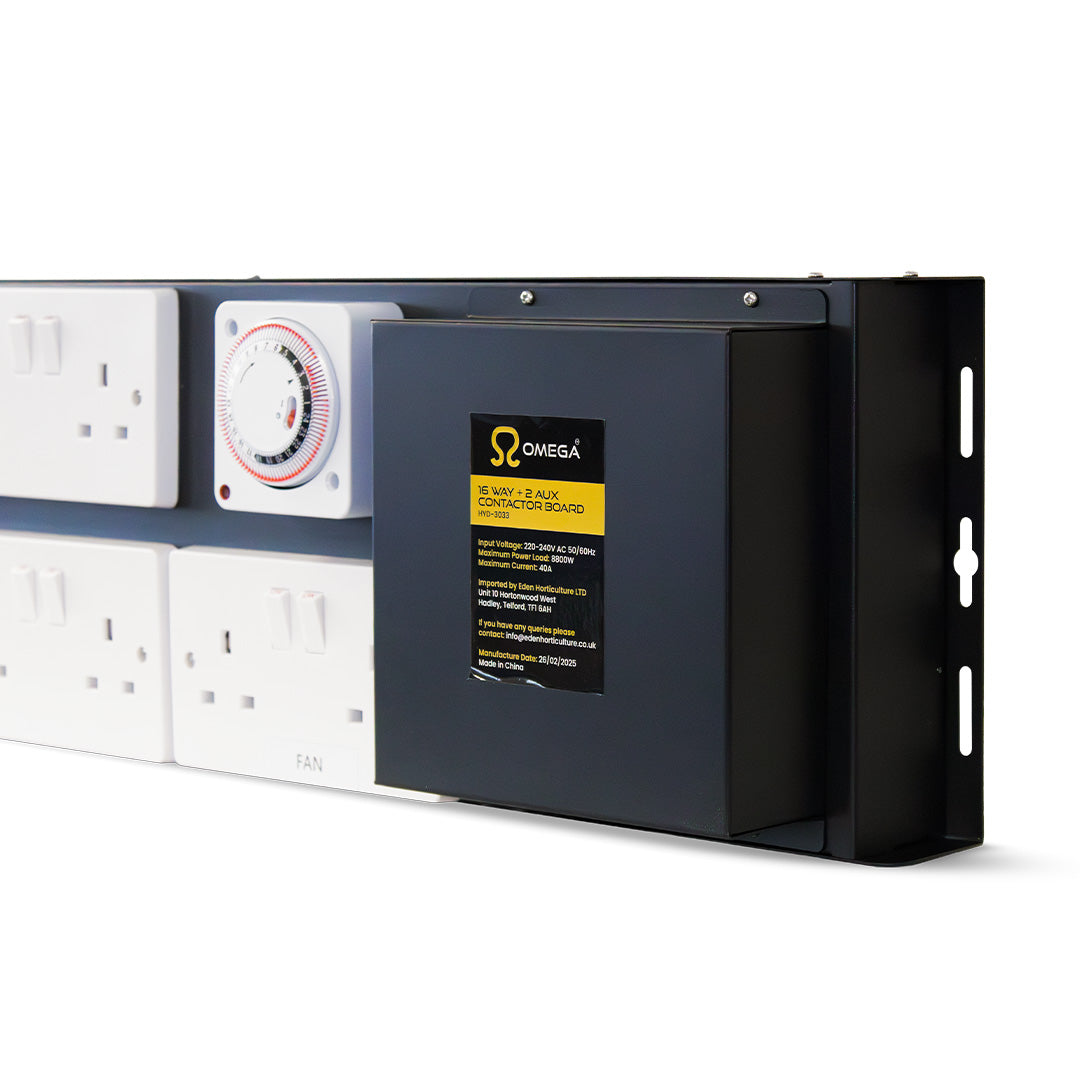

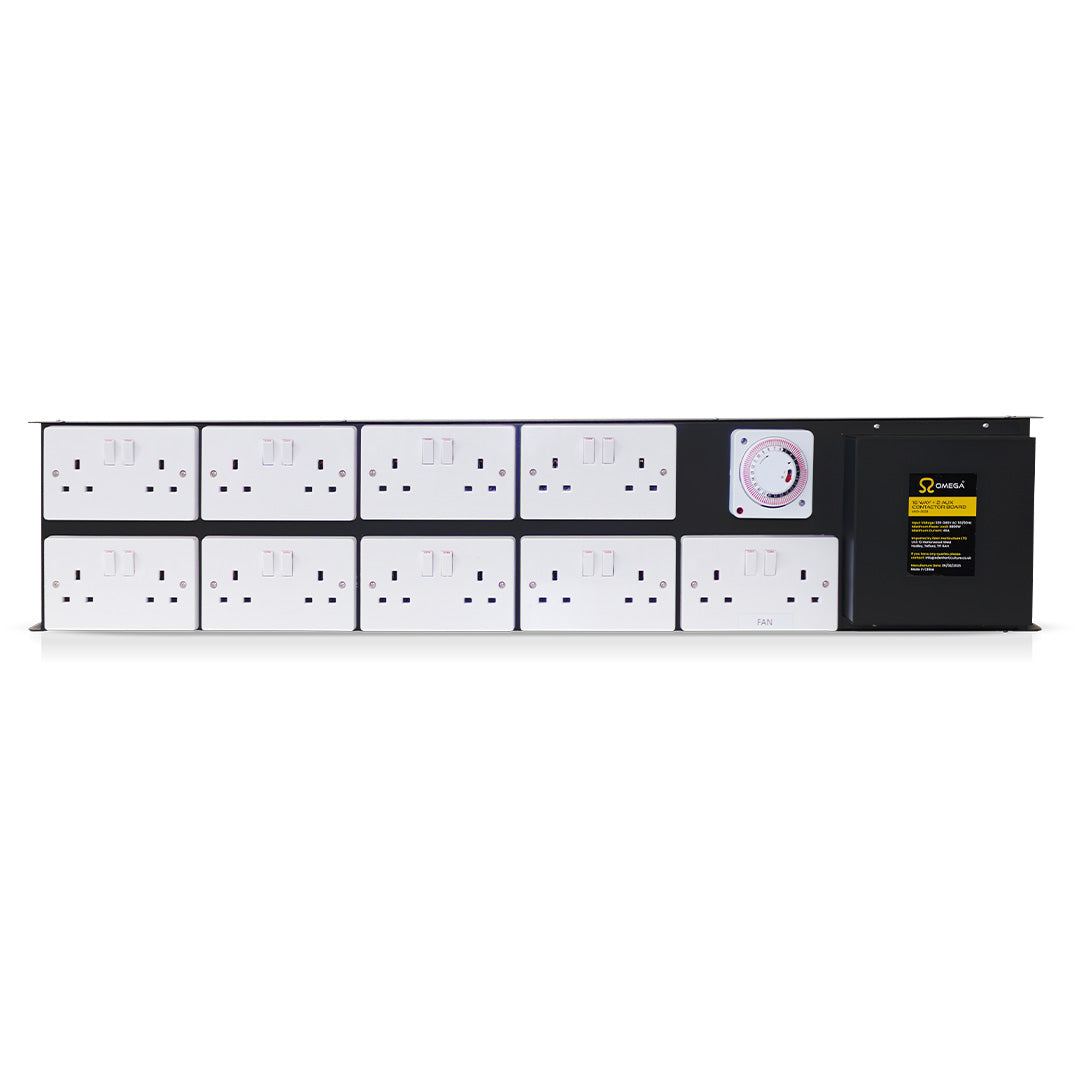

Omega Contactor 16 way + 2 AUX
The Omega Contactor is a heavy-duty timer panel designed to safely control high-load electrical appliances without risking timer failure. It’s ideal for grow rooms or industrial environments where multiple appliances need to be scheduled at once.
This robust unit allows you to synchronise up to 16 appliances on a 24-hour cycle using a built-in mechanical timer with 96 adjustable 15-minute segments. The panel also features 2 always-on sockets, clearly marked for continuous power supply – perfect for fans or controllers that must not switch off.
⚠️ Please note: This is a high-power electrical component that must be hard-wired by a qualified electrician or other competent professional, in accordance with local regulations.
Key Features
- Safely controls appliances with high inductive loads
- Schedule up to 16 appliances at once
- 2 non-timed sockets provide constant power
- Simple mechanical timer for easy programming
- Designed to prevent contact burnout under heavy load
Technical Specifications
- Voltage: 220–240 V AC1
- Frequency: 50/60 Hz
- Max Load: 40 Amps
- Max Power: 8800W

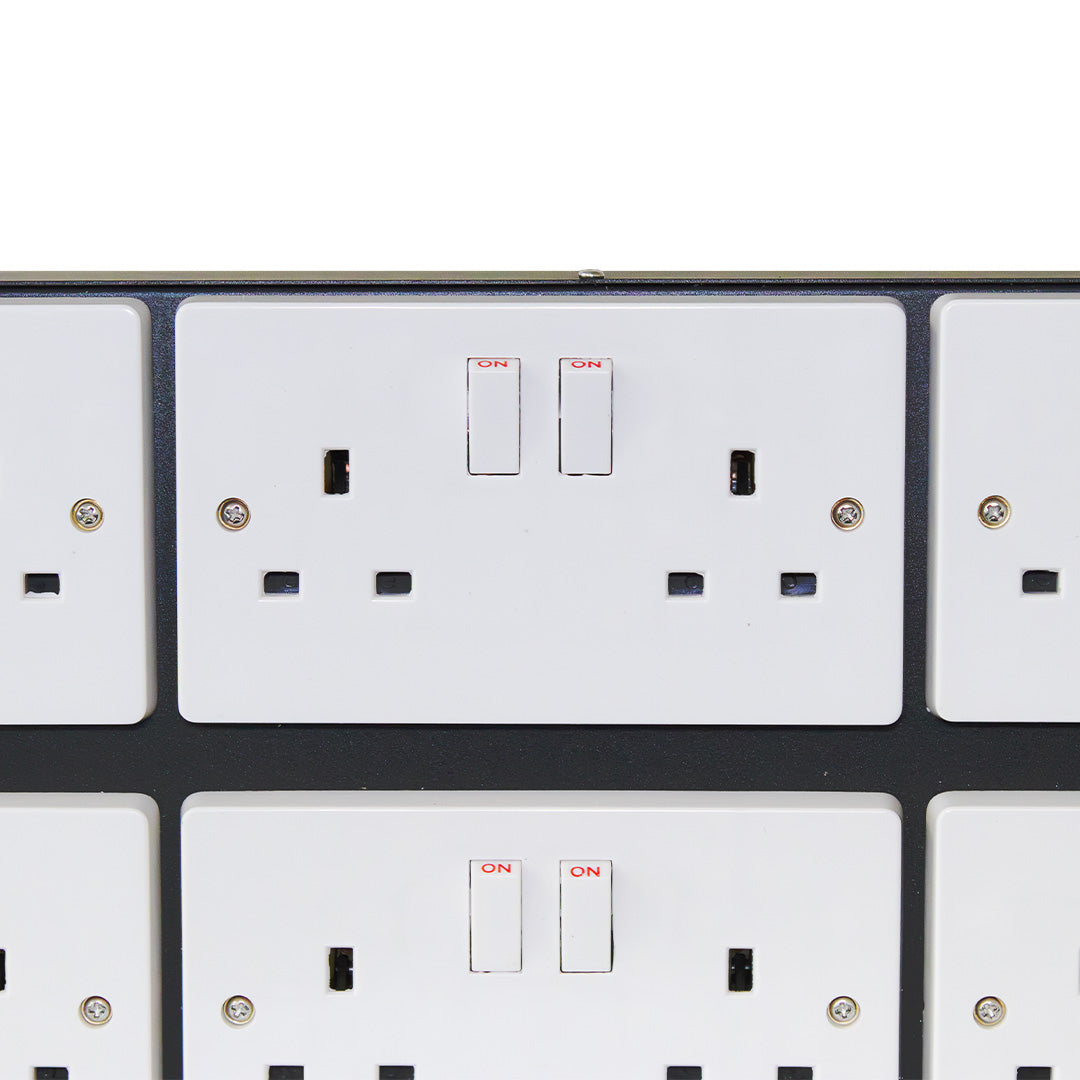

- 16 timed sockets (synchronous scheduling)
- 2 untimed sockets (continuous power)

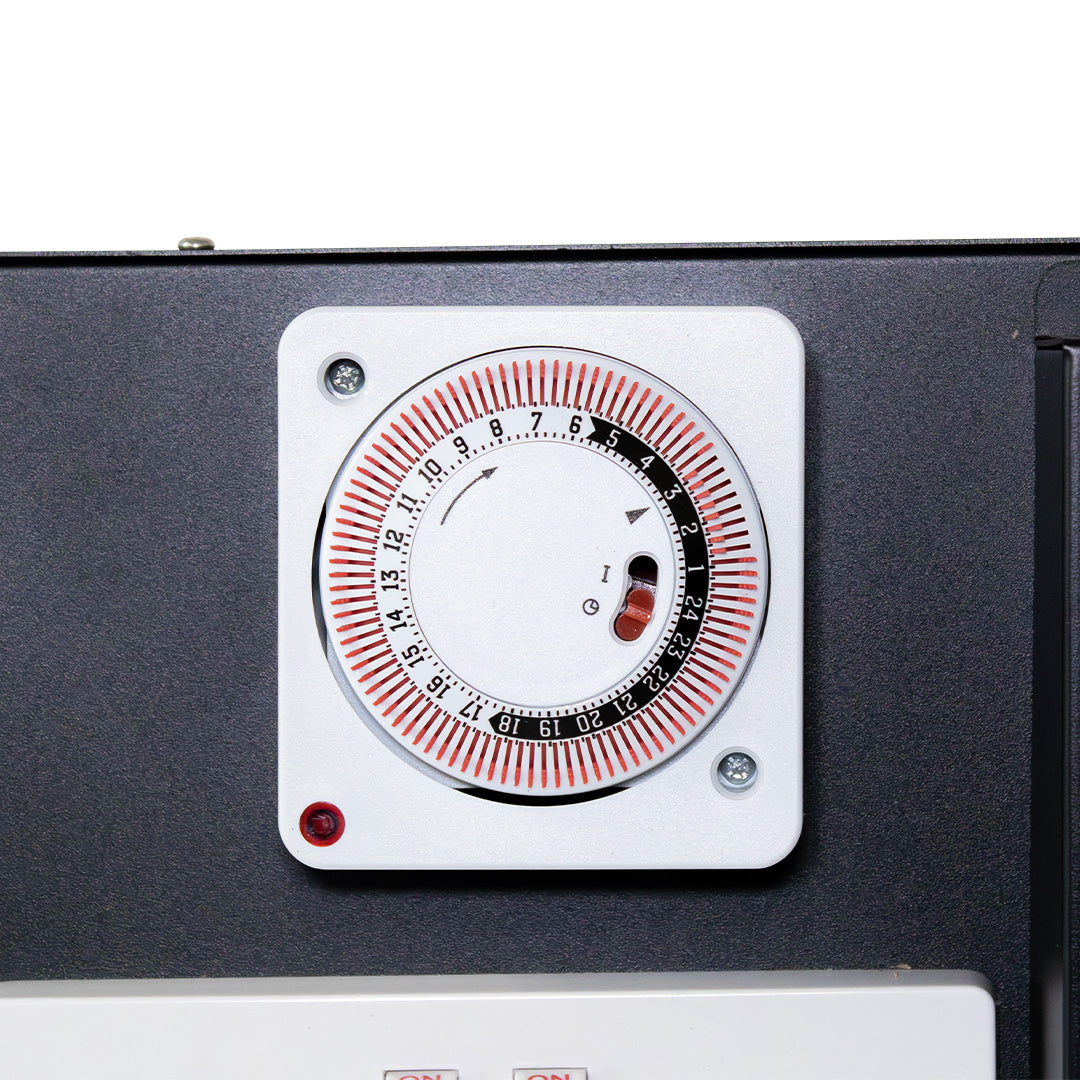

- Timer: 24-hour, 96 x 15-min intervals
Specifications
